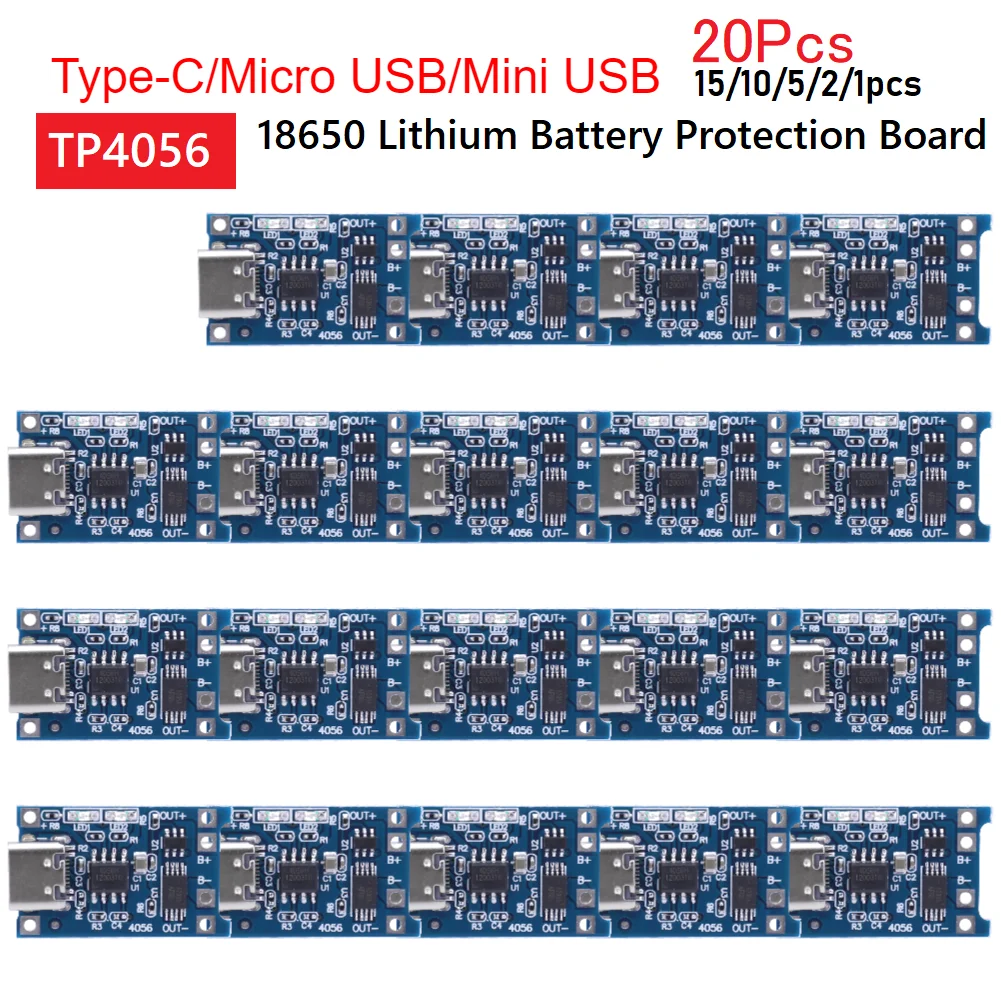

1-20PCS 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Type-C/Micro/Mini USB

Mini USB / 1PCS / United States

$8.18

1-20PCS 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Type-C/Micro/Mini USB

$8.18

Color Mini USB Micro USB Type-C

Current 1PCS 5PCS 10PCS 2PCS 15PCS 20PCS

Ships FromUnited States

(1PCS,Type-C /5PCS,Type-C /10PCS,Type-C /20PCS,Type-C /15PCS,Type-C /2PCS,Type-C )--Integrated Circuit

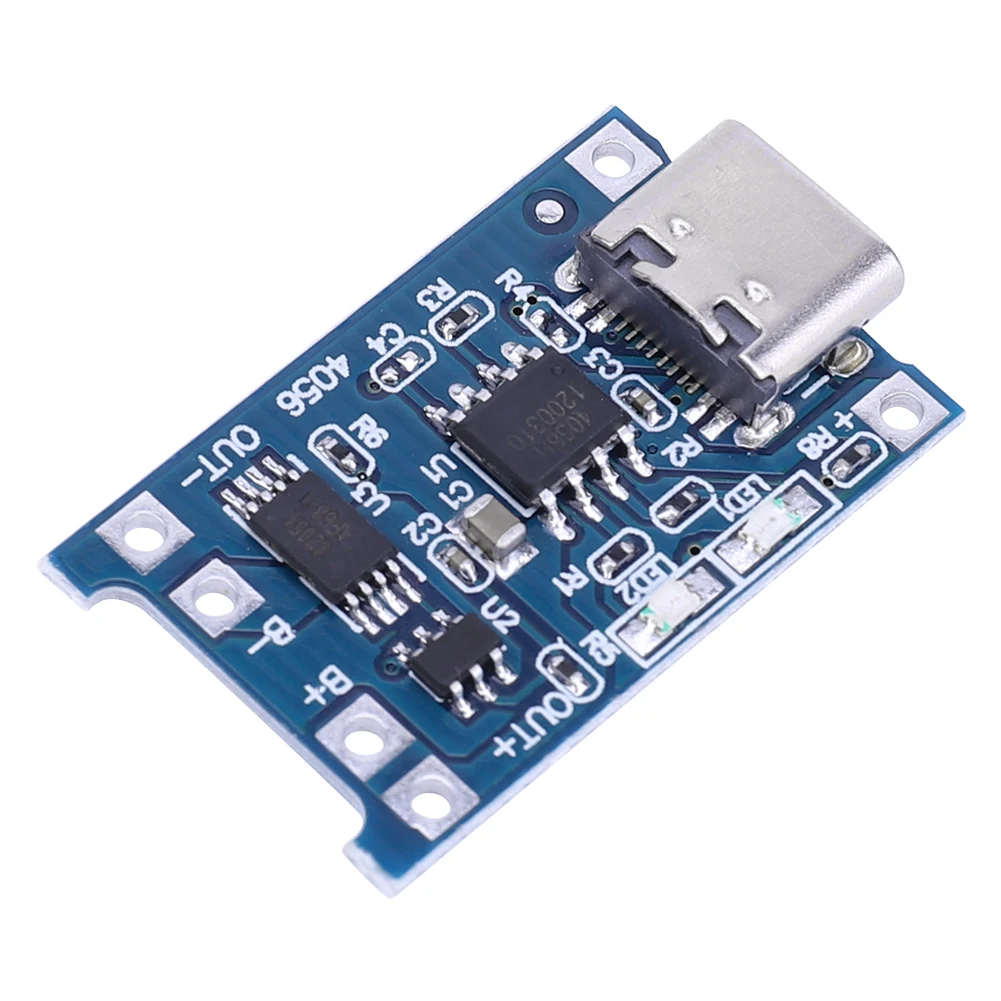

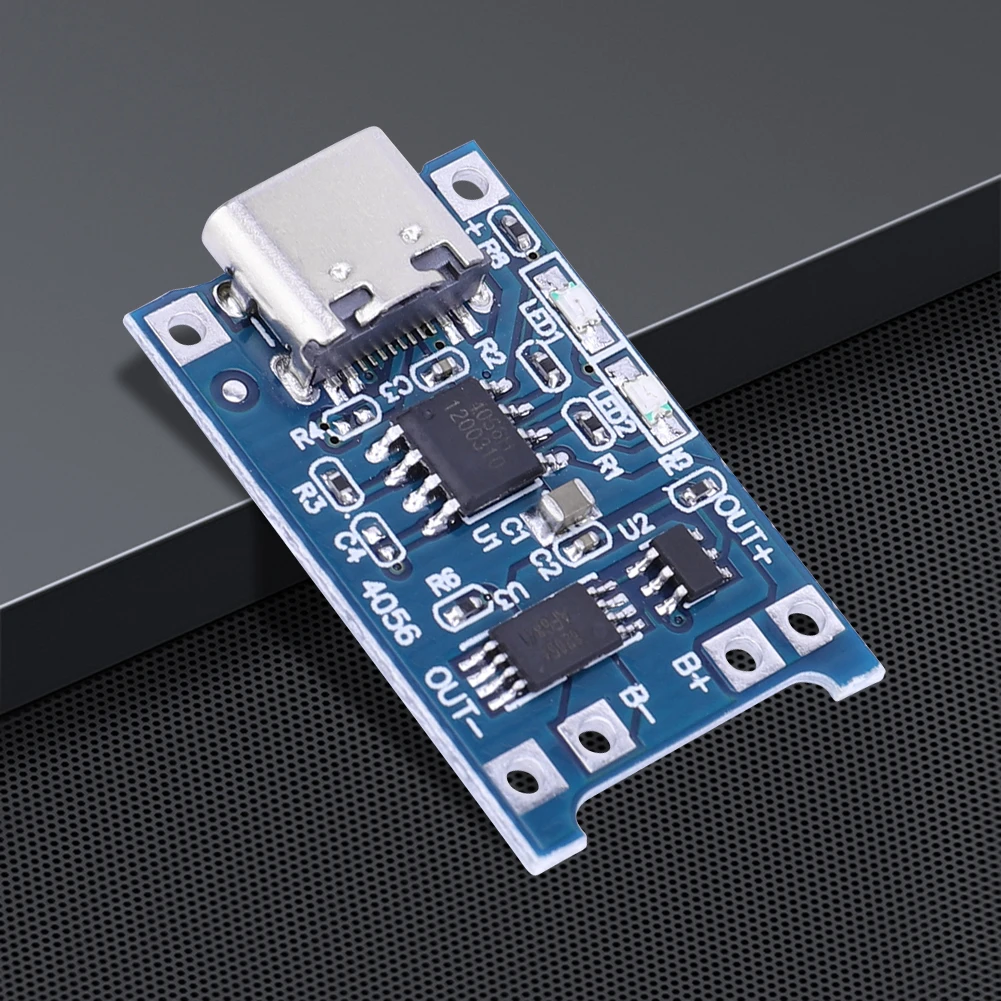

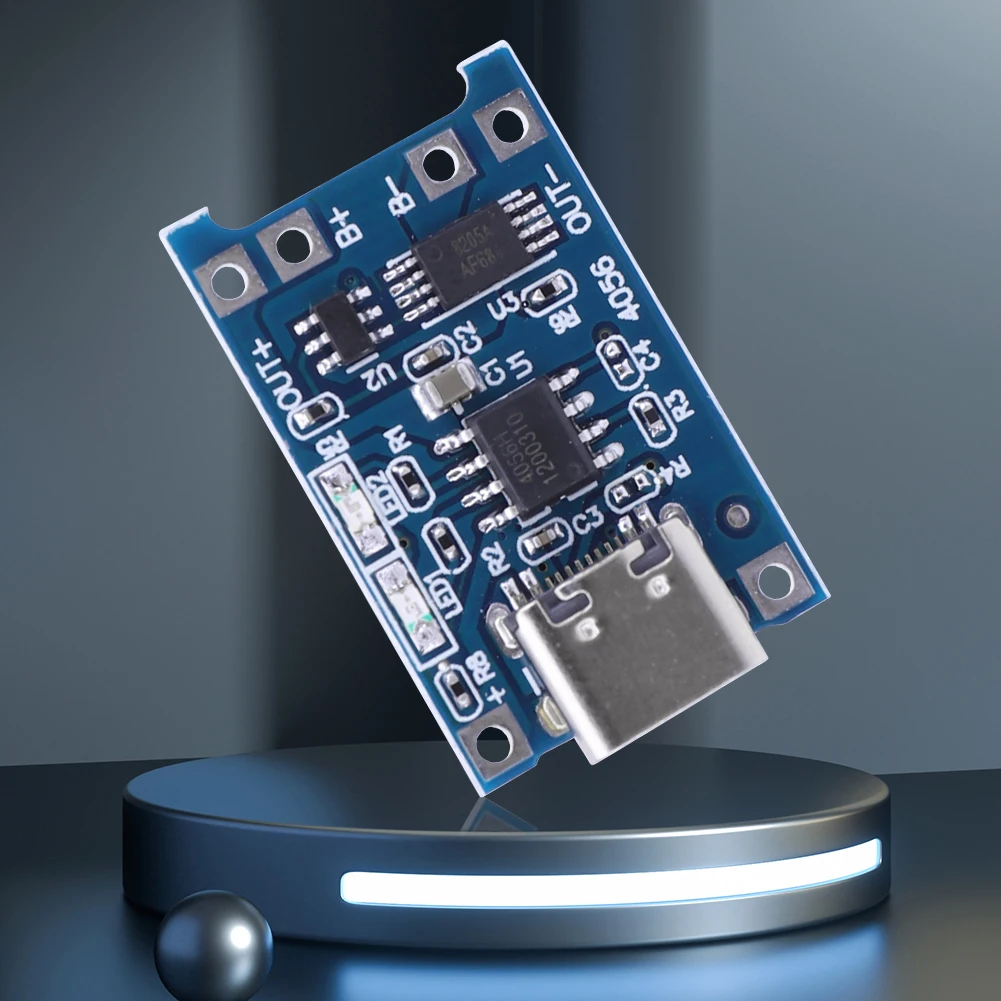

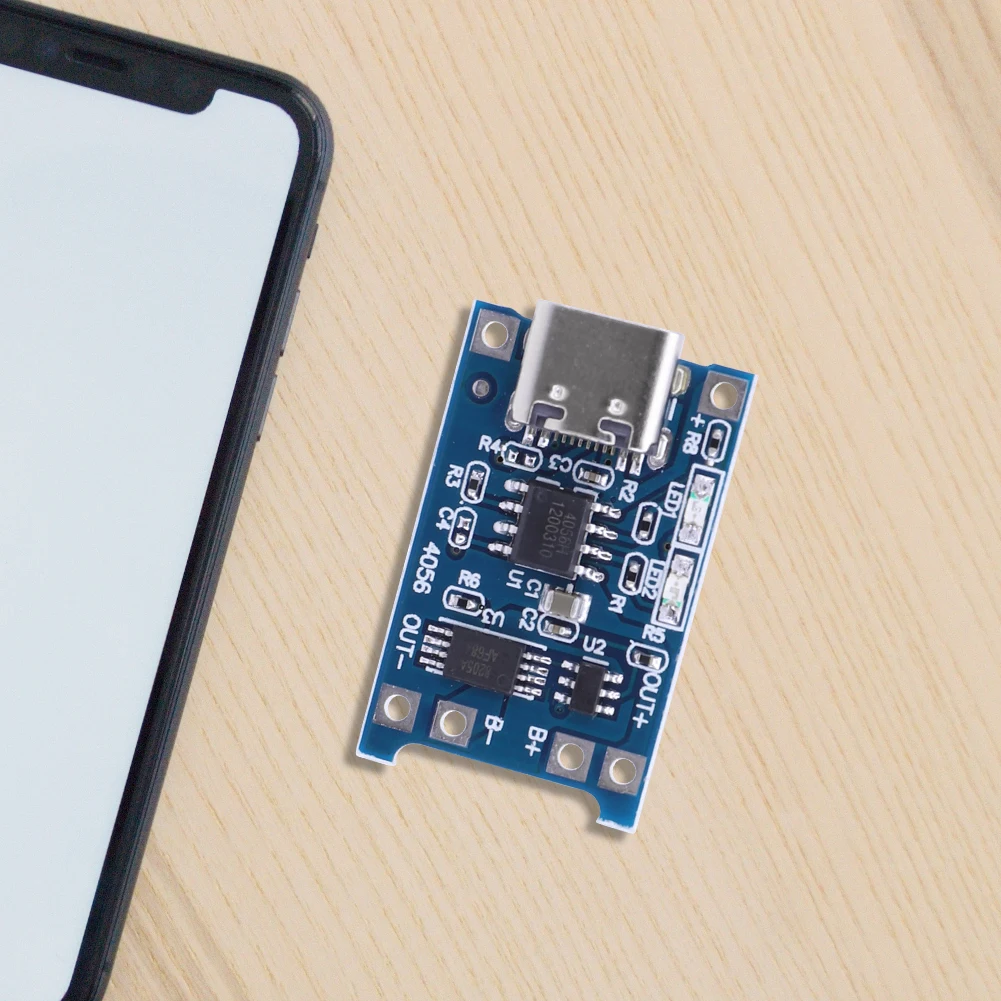

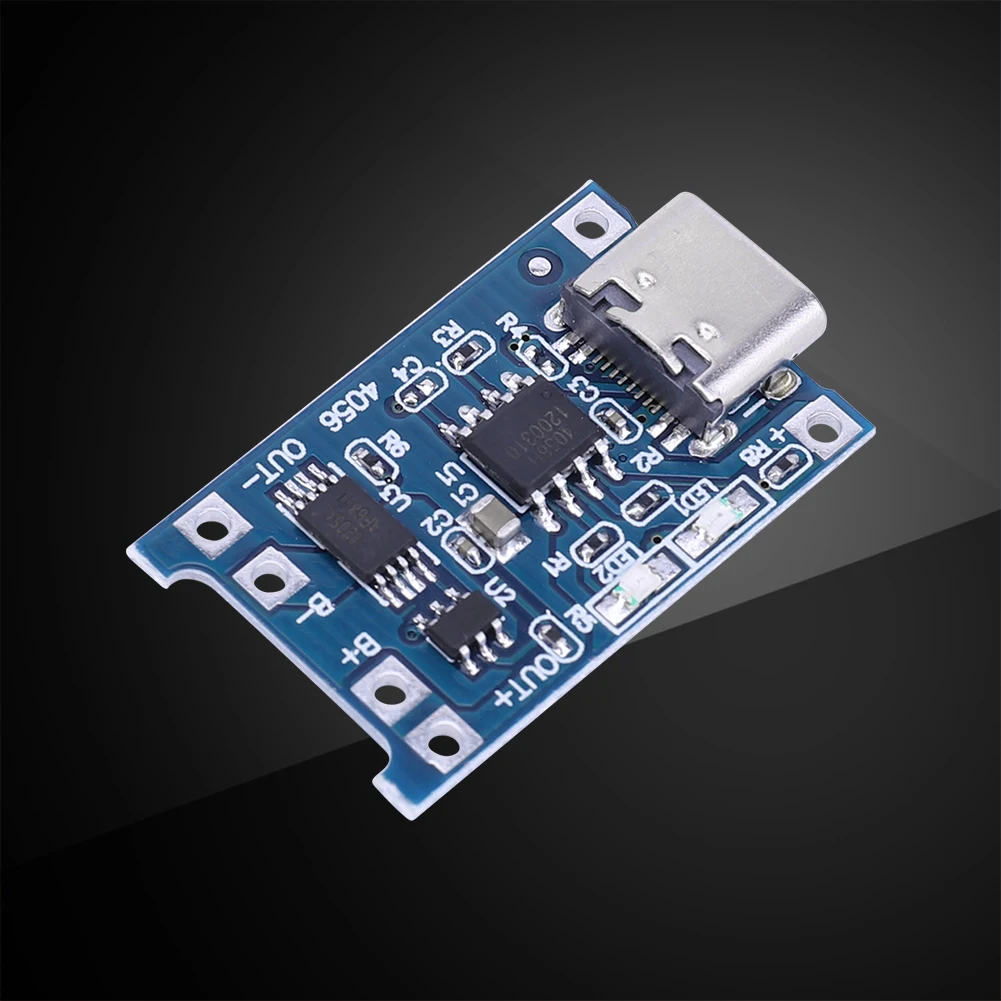

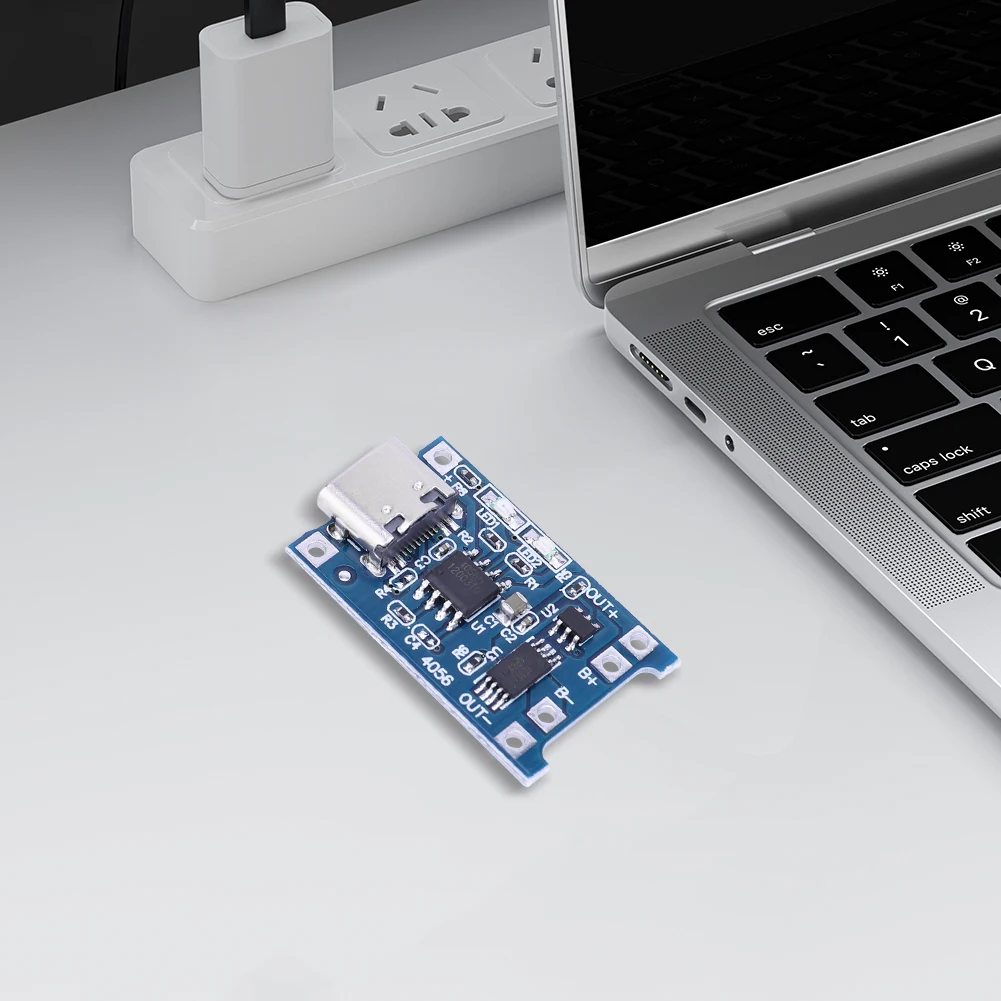

TP4056 Lithium Battery Charger Module 1A Portable Battery Charger Panel Type C Micro USB 4.5V-5V for Lithium Batteries

Feature:
1. Wide Input Voltage Range: Our lithium battery charger module is compatible with a wide range of input voltages from 4.5V to 5V, making it versatile and adaptable to a variety of different power sources.
2. High Charging Current: The battery charging board can charge at a maximum current of 1000mA, meaning your batteries will charge quickly and efficiently.
3. Over-Discharge Protection: With over-discharge protection at 2.5V/3A, this battery charging module protects your batteries from damage due to over-discharging.
4. Compact Size: The small size of the board, measuring only 28*17*4mm, makes this mini battery charger board easy to install and use in a range of different settings.
5. Multiple Protection Features: This portable battery charger panel features both charging and over-discharge protection, preventing damage to your batteries from over-charging or over-discharging. Additionally, the module automatically controls the charging current, providing optimal protection to your batteries while charging.

Specification:
Certification: NONE
Origin: Mainland China
Accessory Type: Battery Accessories
Model Number: Lithium Battery Charger Module
Type(optional): 1pcs;5pcs;10pcs
Input voltage: 4.5V-5V
Maximum charging current: 1000Ma
Charging cut-off voltage: 4.2V±1%
Battery over discharge protection voltage: 2.5V/3A
Board size: 28 x 17 x 4mm/1.10 x 0.67 x 0.16inch
Usage:

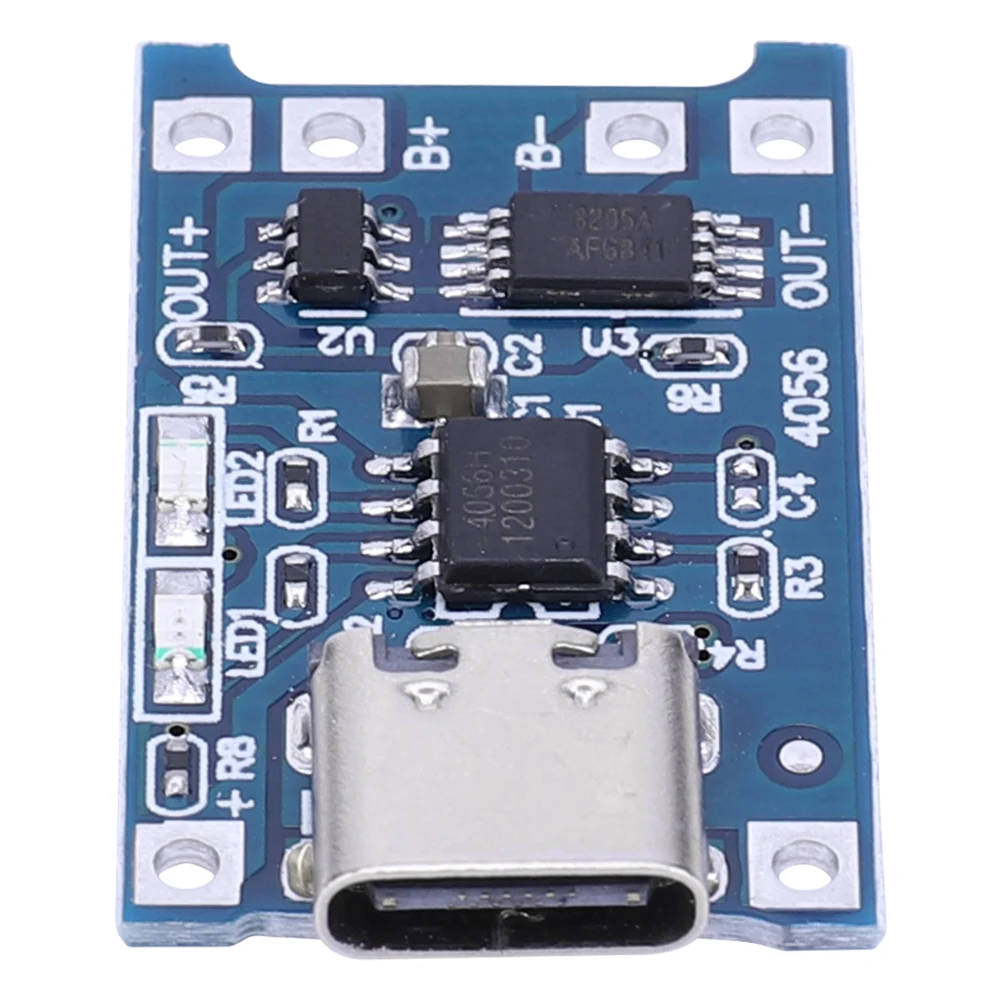

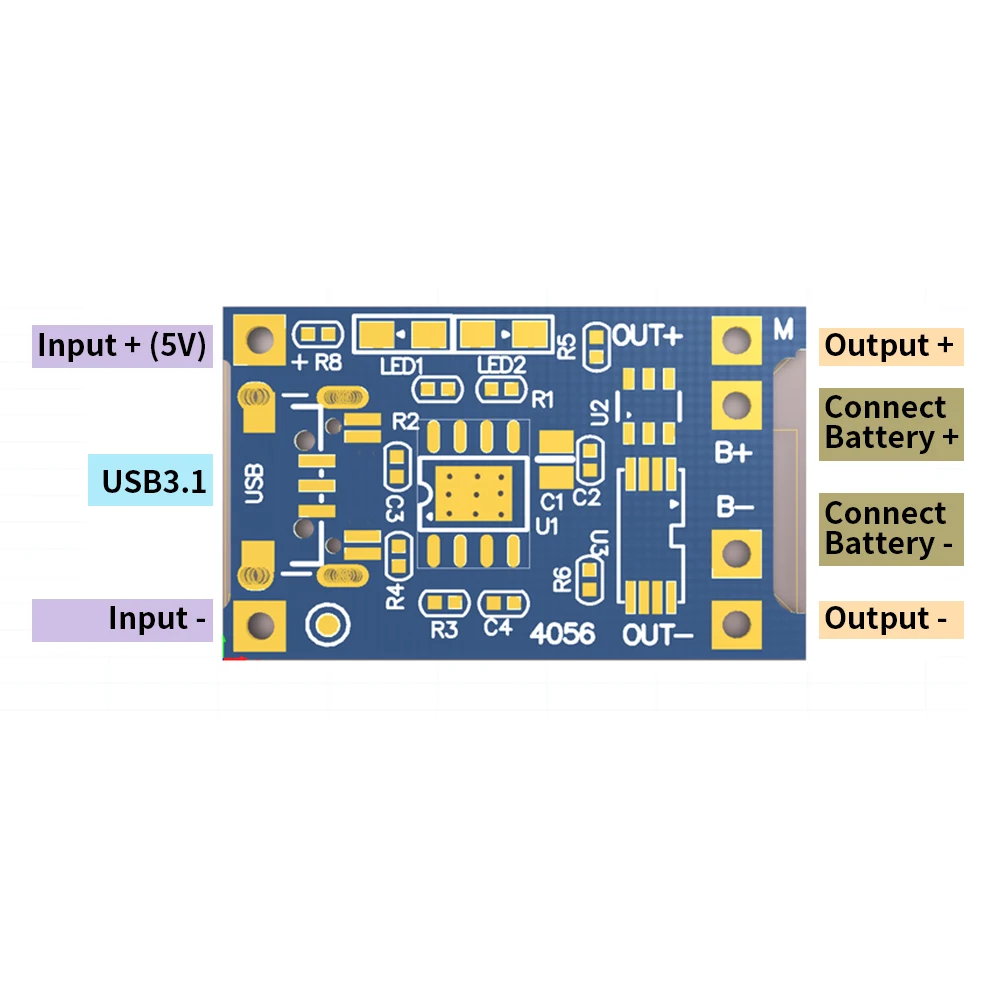

Type-c female socket and the + - pad next to the power input, access the 5V input voltage. b+ connects to the positive terminal of the lithium battery, b- connects to the negative terminal of the lithium battery. out+ out- connects to the load, such as the booster board. Connect the battery to B+ B-, plug in the phone charger to USB, the blue light is on, indicating that there is power access, the red light is flashing, indicating that it is charging. When it is fully charged, the red light will stop flashing and become constant. You can connect a load to the OUT+ OUT- terminal, when the load is connected, the red light is always on. When there is power at the input, current is obtained from the power output, if no power is connected, current is obtained from the battery and the output is automatically switched off when the battery voltage is below 2.5V.
Tip:
When the battery is connected for the first time, there may be no voltage output at the OUT terminal, you need to connect 5V to the power input to charge it a little and activate the protection circuit. When using a mobile phone charger for power supply, it must be able to output more than 1A, otherwise it may not charge properly.
Product features:
1. Charging protection, prevent battery overcharge and over discharge, and automatically control the charging current, better protect the battery
2. type-c female connector, reserved with input voltage welding electricity, convenient for DIY

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

(1PCS,Mini USB/5PCS,Mini USB/10PCS,Mini USB/20PCS,Mini USB/2PCS,Mini USB/15PCS,Mini USB)--Lithium Battery Charger Module

TP4056 Lithium Battery Charger Module 1A Mini USB Portable Battery Charger Panel DC4.5-5.5V with Indicator Light for Lithium Batteries

Feature:
1. Wide Range of Input Voltage: Our lithium battery charger module is compatible with a wide range of input voltages, ranging from DC4.5V to 5.5V, making it adaptable to a variety of different power sources.
2. Multiple Input Options: With both IN+ IN- soldering terminals and Mini USB 5V input options available, this battery charging board provides flexibility and convenience in powering and charging your batteries.
3. Adjustable Charging Current: The battery charging module features an adjustable charging current of up to 1A, allowing you to customize the charging speed based on your needs.
4. Fully Charged Indicator: Equipped with a charging indicator light, this mini battery charger board keeps you informed about the status of your battery charge, providing peace of mind and convenience.
5. Safe and Reliable: The portable battery charger panel is designed with safety and reliability in mind, featuring over-voltage and over-current protection to ensure safe and efficient charging every time.

Specification:
Certification: NONE
Origin: Mainland China
Accessory Type: Battery Accessories
Model Number: Lithium Battery Charger Module
Tye(optional): 1PCS, 5PCS, 10PCS
Input voltage: DC4.5V-5.5V; IN+ IN- pad wiring or MiniUSB 5V input
Full charge voltage: DC4.2V
Charging current: 1A adjustable with charging indicator
Operating temperature: -10°C~+85°C
Product size: 28 x 17 x 4mm /1.1 x 0.67 x 0.15inch
Instructions for use:
1. after powering up, the blue indicator of the module is always on and the red indicator flashes slightly;
2. when the battery is fully charged, the module's red and blue indicators are always on.
Tips:
1. the wiring must be distinguished between positive and negative polarity, reverse connection burn IC
2. use short and thick wires for charging, if they are too thin and too long, the connection resistance will be high and the battery voltage will drop more after charging
3. the connection wire should have good contact, otherwise the battery voltage will drop more after charging
4. the output current can be adjusted by changing the fixed resistor in the circuit board to change the output current from 100mA to 1000mA
5. if the 5V input voltage is high, such as 5.2V or 5.5V, it will cause the charging current to be less than 1000mA, which is normal. This is normal. The high voltage makes the chip hot and will automatically reduce the charging current to reduce the chance of the chip being burned.
6. the charging current is too high, or in a high temperature environment, need to do heat dissipation treatment
7. the ammeter for testing the current can only be connected in series to the 5V input of the charging board
8. the satisfactory effect of the charging current should be 0.37 times the capacity of the battery. For example, a 1000mAH battery charging current of 400mA is fine
9. the faster the charging speed, the worse the charging effect, the more the battery voltage drops after charging is completed

(1PCS,Micro USB/5PCS,Micro USB/10PCS,Micro USB/20PCS,Micro USB/15PCS,Micro USB/2PCS,Micro USB)--Integrated Circuit

Lithium Battery Charger Module Micro USB Portable Battery Charger Panel 1A DC4.5-5.5V with Indicator Light for Lithium Batteries

Specification:
Certification: NONE
Origin: Mainland China
Accessory Type: Battery Accessories
Model Number: Lithium Battery Charger Module
Tye(optional): 1PCS, 5PCS, 10PCS
Input voltage: DC4.5V-5.5V; IN+ IN- pad wiring or Micro USB 5V input
Full charge voltage: DC4.2V
Charging current: 1A adjustable with charging indicator
Operating temperature: -10°C~+85°C
Product size: 23 x 16 x 5mm/0.9 x 0.6 x 0.2inch
Instructions for use:
1. after powering up, the blue indicator of the module is always on and the red indicator flashes slightly;
2. when the battery is fully charged, the module's red and blue indicators are always on.
Tips:
1. the wiring must be distinguished between positive and negative polarity, reverse connection burn IC
2. use short and thick wires for charging, if they are too thin and too long, the connection resistance will be high and the battery voltage will drop more after charging
3. the connection wire should have good contact, otherwise the battery voltage will drop more after charging
4. the output current can be adjusted by changing the fixed resistor in the circuit board to change the output current from 100mA to 1000mA
5. if the 5V input voltage is high, such as 5.2V or 5.5V, it will cause the charging current to be less than 1000mA, which is normal. This is normal. The high voltage makes the chip hot and will automatically reduce the charging current to reduce the chance of the chip being burned.
6. the charging current is too high, or in a high temperature environment, need to do heat dissipation treatment
7. the ammeter for testing the current can only be connected in series to the 5V input of the charging board
8. the satisfactory effect of the charging current should be 0.37 times the capacity of the battery. For example, a 1000mAH battery charging current of 400mA is fine
9. the faster the charging speed, the worse the charging effect, the more the battery voltage drops after charging is completed
