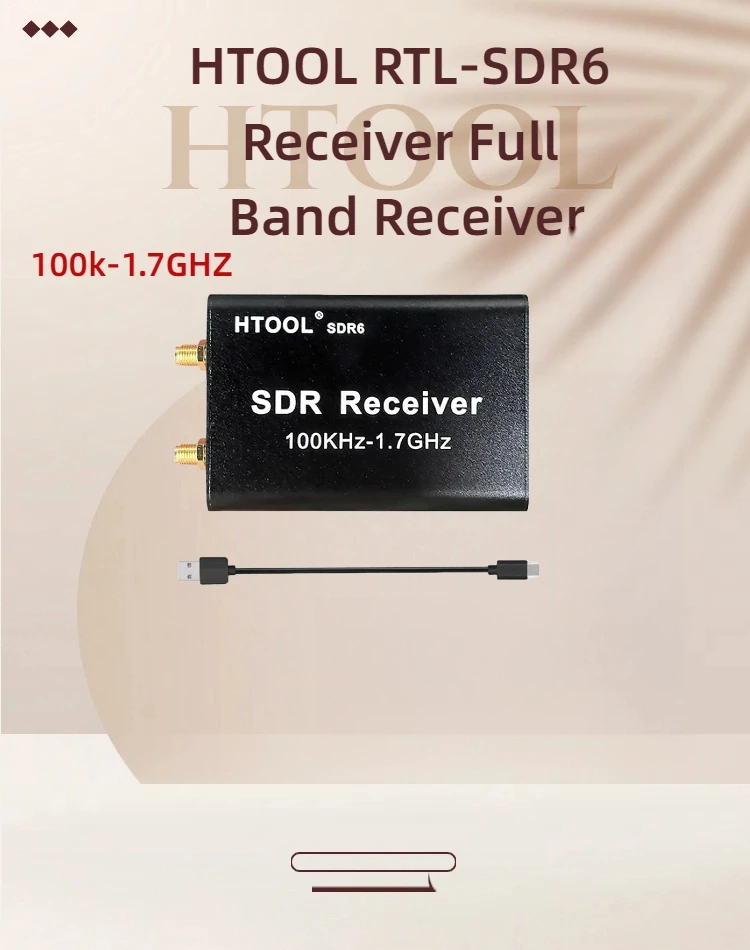

100KHz-1.7GHz SDR6 Receiver (Full Band SDR Receiver) Full Band RTL-SDR Receiver Aviation Short Wave Broadband
$58.29
Description:
100KHz-1.7GHz full-band RTL-SDR receiver, can be connected to PC, Android mobile phone and other devices, use SDR software to receive electromagnetic waves, support AM, FM (NFM, WFM), CW, DSB, LSB, USB demodulation, can listen to medium wave, short wave, FM radio, short wave single sideband communication, walkie-talkie calls.

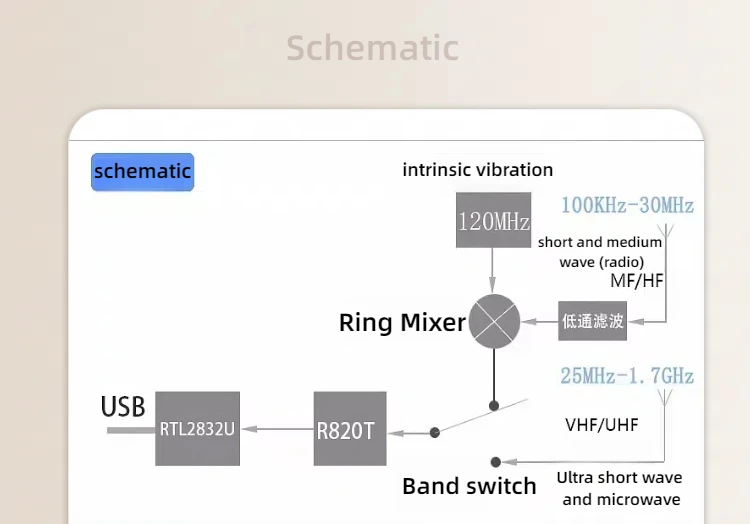

The medium and short wave directly input the signal received by the antenna to the digital-to-analog conversion chip, which solves the problems of signal loss, noise, waveform clutter, and offset frequency caused by the use of frequency converter, thereby improving the sensitivity, clear and complete waveform display, high resolution, and actual frequency.

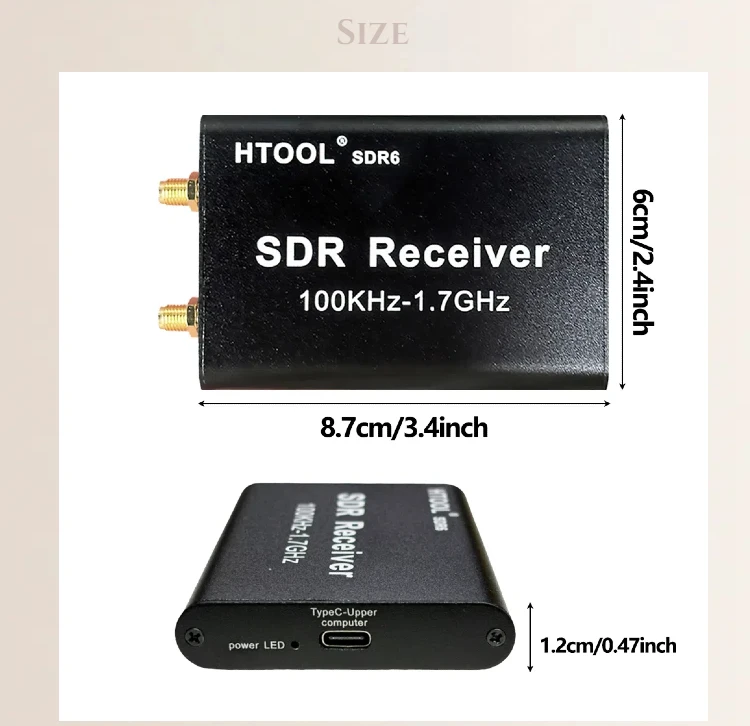

The device interface type adopts USB Type-C interface, the maximum bandwidth is 1.7GHz, and the shell is made of aluminum resistant alloy material

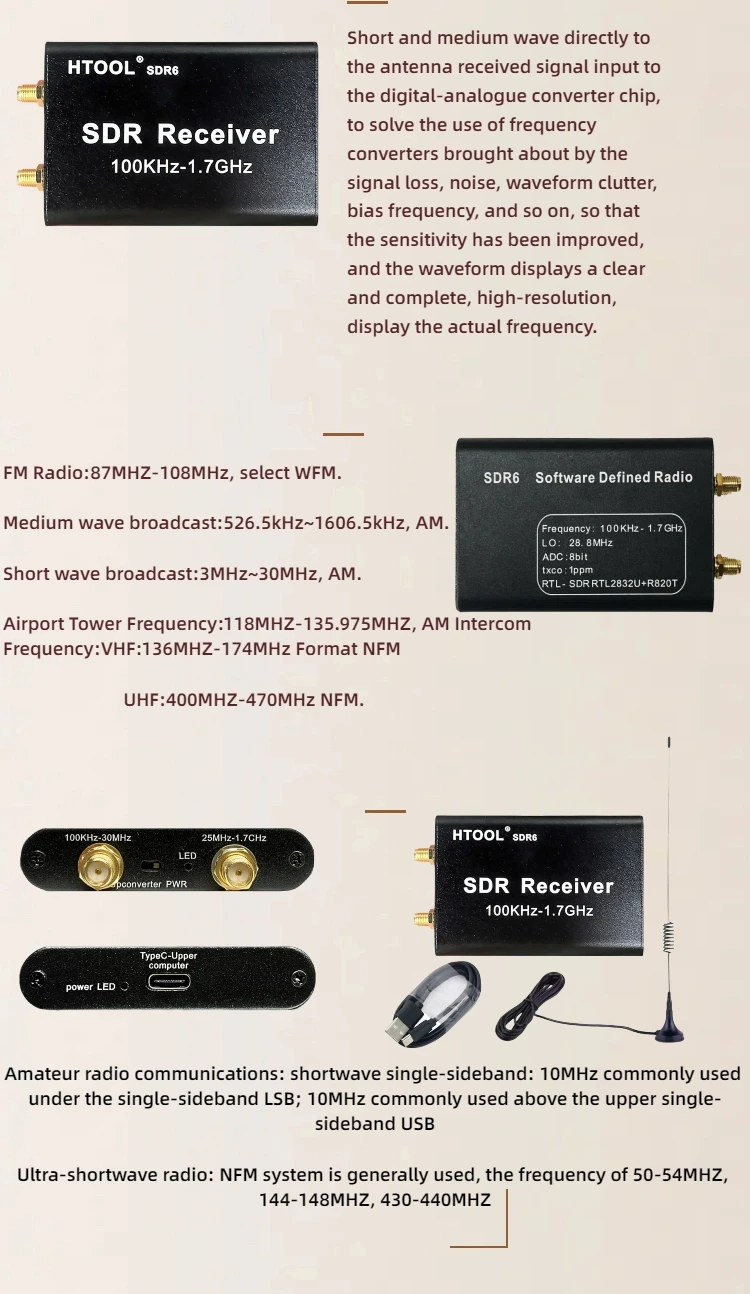

FM Radio: 87MHz-108MHz, choose WFM.
Medium wave broadcasting 526.5kHz~1606.5kHz, AM.
Shortwave broadcasting: 3MHz~30MHz, AM.
Airport tower frequency: 118MHz~135.975MHz, AM.
Walkie-talkie frequency. VHF: 136MHz-174MHz, NFM format UHF: 40OMHz-470MHz in NFM standard.
Applications:
FM Frequency Modulation, AM Amplitude Modulation, SSB Single Sideband, CW Amplitude Telegraph, Air Traffic Control Control, Area Modulation, Aviation, Railway Bands, Broadcast Automatic Surveillance, Broadband and Narrowband Analog, Digital Walkie-Talkies, DMR Digital Walkie-Talkies, DRM Digital Radio, SSTV Images, NOAA Weather Maps, Radio Astronomy Monitoring, ISS International Space Station, etc.
Competitive Advantage:
The frequency range is 100KHz-1.7GHz, the local oscillator frequency is 120MHz, the ADC accuracy is 8bit, and the stabilized crystal oscillator is 1PPM. Yes, the sensitivity is improved, and the wave frequency display is clear and complete, the resolution is high, and the actual frequency is displayed.
Packing List:
1 x Receiver OR
1 x USB Cable
