10pcs ESP32-Audio-Kit ESP32 Audio Development Board ESP32-Aduio-Kit Wireless Module Dual-core ESP32-A1S 8M Serial to WiFi
10pcs ESP32-Aduio-Kit
$136.73
Skip to product information

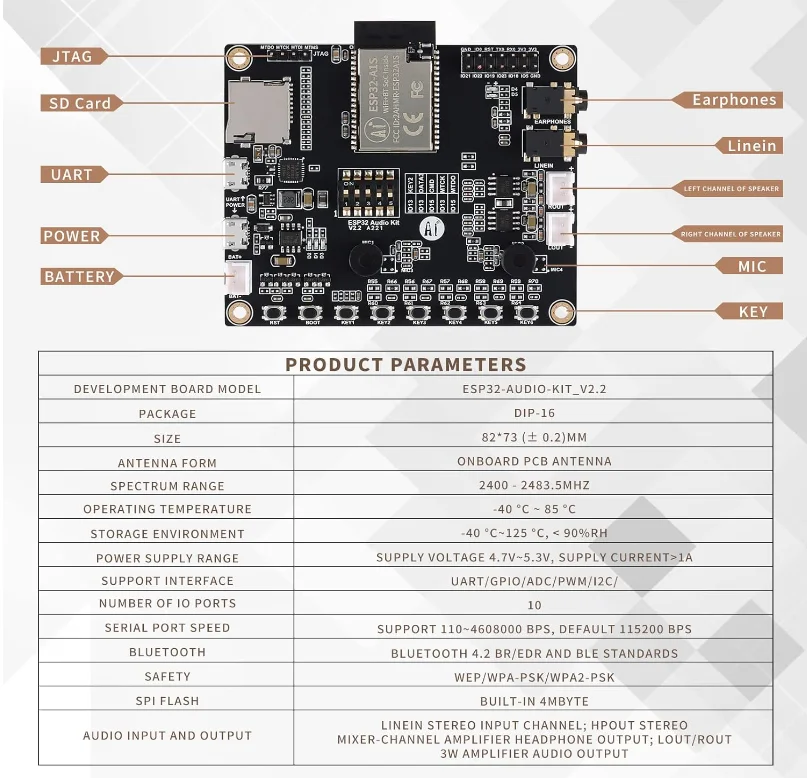

Development board model: ESP32-Audio-Kit_ _V2.2
Package: DIP-16
Size: 82*73(+0.2)mm
Antenna form: onboard PCB antenna
Spectrum range: 2400 ~ 2483.5MHz
Working temperature: -40 °C~ 85 °C
Storage environment: -40 °C~ 125 °C, < 90%RH
Power supply range: supply voltage 4.7V~ 5.3V, supply current>1A
Support interface: UART/GPIO/ADC/PWM/12C/
Number of IO ports: 10
Serial port speed: support 110 ~ 4608000 bps, default 115200 bps
Bluetooth: Bluetooth 4.2 BR/EDR and BLE standard
Security: WEP/WPA-PSK/WPA2-PSK
SPI Flash: built-in 4MByte
Audio input and output: LINEIN stereo input channel; HPOUT stereo mixer. Channel amplified headphone output; LOUT/ROUT 3W power amplifier audio output
Q3: What about lead time?
10pcs ESP32-Audio-Kit ESP32 Audio Development Board ESP32-Aduio-Kit Wireless Module Dual-core ESP32-A1S 8M Serial to WiFi
$136.73
Product Description
Specification
item |
value |
Type |
Development Board |
Place of Origin |
China |
Guangdong |
|
Brand Name |
EC-Buying |
Application |
IOT |
Product Name |
ESP32-Aduio-Kit |
Condition |
100% Original Brand |
Lead time |
3-5 Days |
Service |
One Stop BOM Service |
ESP32-Aduio-Kit

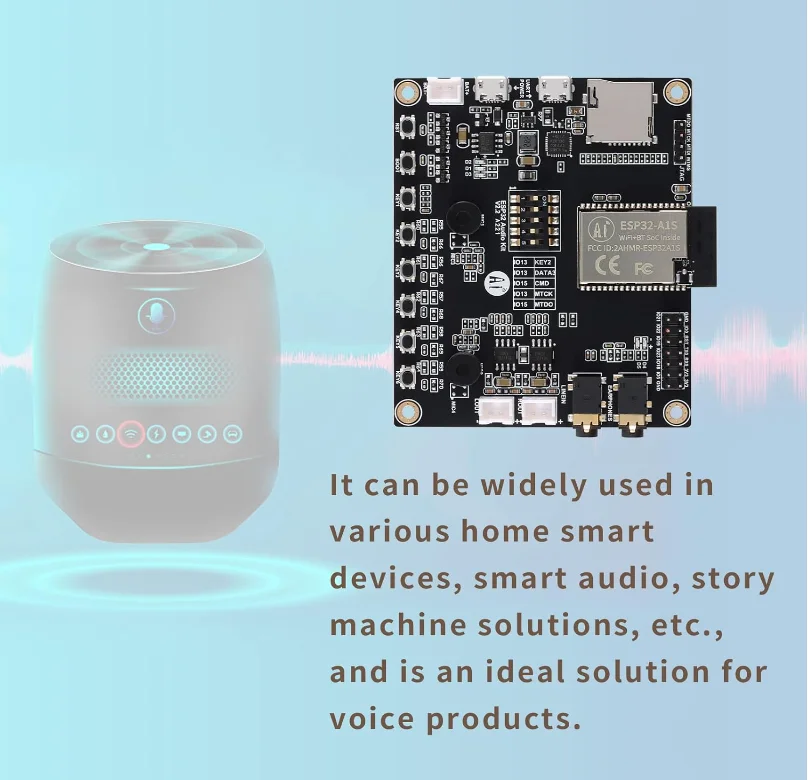

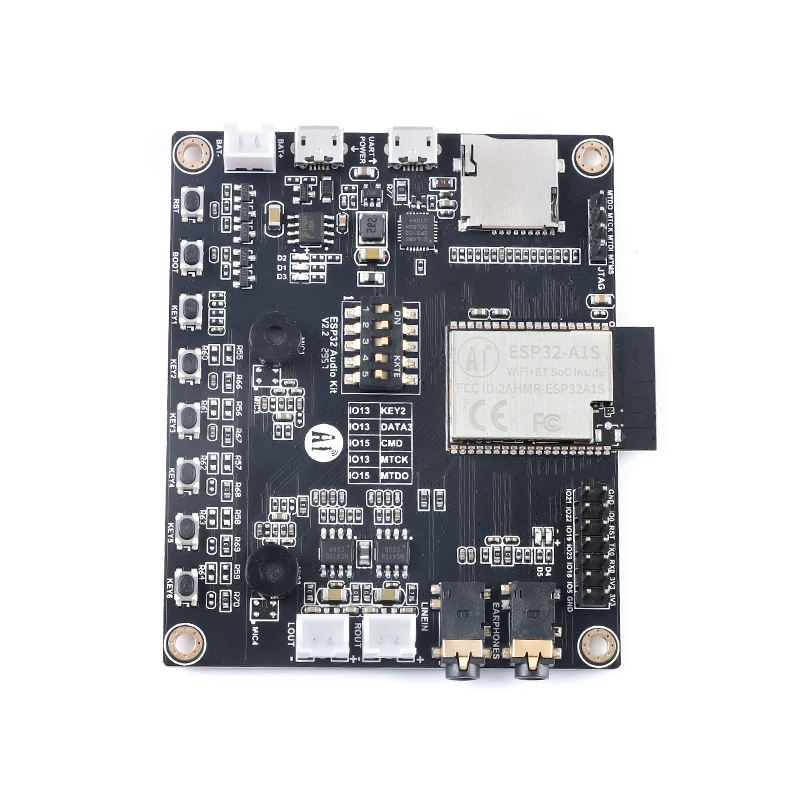

ESP32-Audio-Kit is a small audio development board based on ESP32-A1S module. Most audio peripherals are distributed on both sides of the development board, supporting TF card, headphone output, two microphone inputs and two speaker outputs. It is convenient for developers to develop quickly. Suitable for home smart devices, smart speaker solutions, children's story machine prototypes,
etc., is an ideal solution for IoT applications.
ESP32-Audio-Kit is a small audio development board based on ESP32-A1S module. Most audio peripherals are distributed on both sides of the development board, supporting TF card, headphone output, two microphone inputs and two speaker outputs. It is convenient for developers to develop quickly. Suitable for home smart devices, smart speaker solutions, children's story machine prototypes,
etc., is an ideal solution for IoT applications.
Characteristics:
* Low-power dual-core 32-bit CPU for application processors
* Main frequency up to 240MHz, computing power up to 600 DMIPS
* Built-in 520 KB SRAM, 8M
* Supports interfaces such as UART/SPI/I2C/PWM
* Headphone port: Insert 3.5mm headphone jack to support left and right channel output
* Left and right channel speakers: support output 4Ω 3W speaker output, and support dual channel output
* Two analog microphones, respectively, as audio input; support for headset microphone input
* Support 3.7V lithium battery input; support 5V 2A power input, support simultaneous lithium battery charging
* Support 64G SD card reading and writing
* Support multiple sleep modes
* Embedded Lwip and FreeRTOS
* Support STA/AP/STA+AP working mode
* Support Smart Config/AirKiss One-click distribution network
* Low-power dual-core 32-bit CPU for application processors
* Main frequency up to 240MHz, computing power up to 600 DMIPS
* Built-in 520 KB SRAM, 8M
* Supports interfaces such as UART/SPI/I2C/PWM
* Headphone port: Insert 3.5mm headphone jack to support left and right channel output
* Left and right channel speakers: support output 4Ω 3W speaker output, and support dual channel output
* Two analog microphones, respectively, as audio input; support for headset microphone input
* Support 3.7V lithium battery input; support 5V 2A power input, support simultaneous lithium battery charging
* Support 64G SD card reading and writing
* Support multiple sleep modes
* Embedded Lwip and FreeRTOS
* Support STA/AP/STA+AP working mode
* Support Smart Config/AirKiss One-click distribution network
